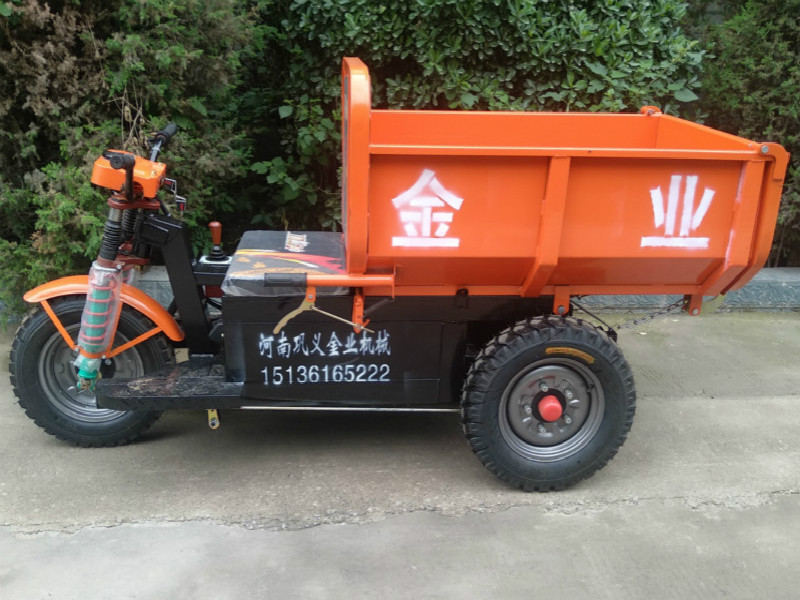

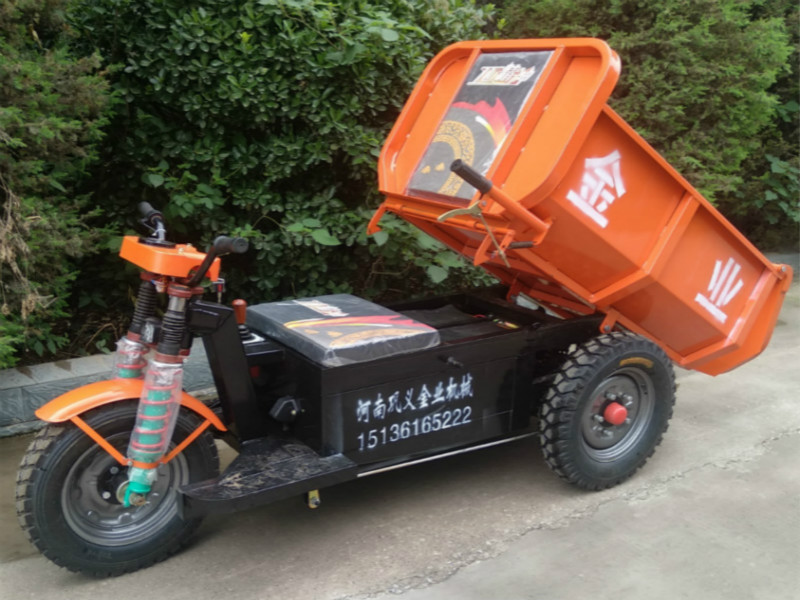

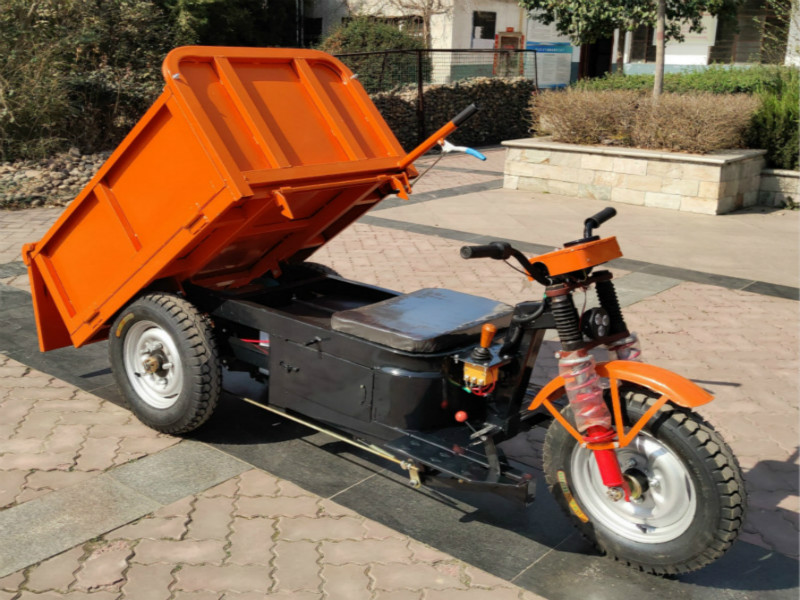

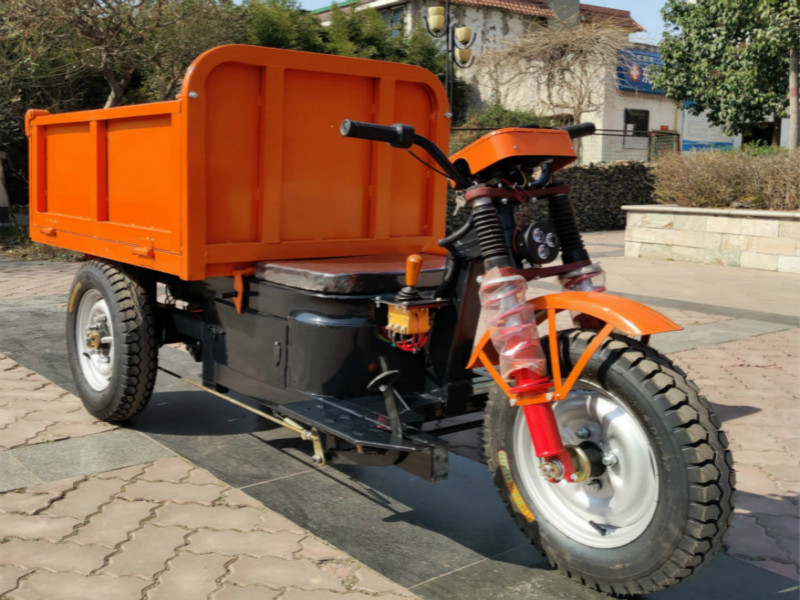

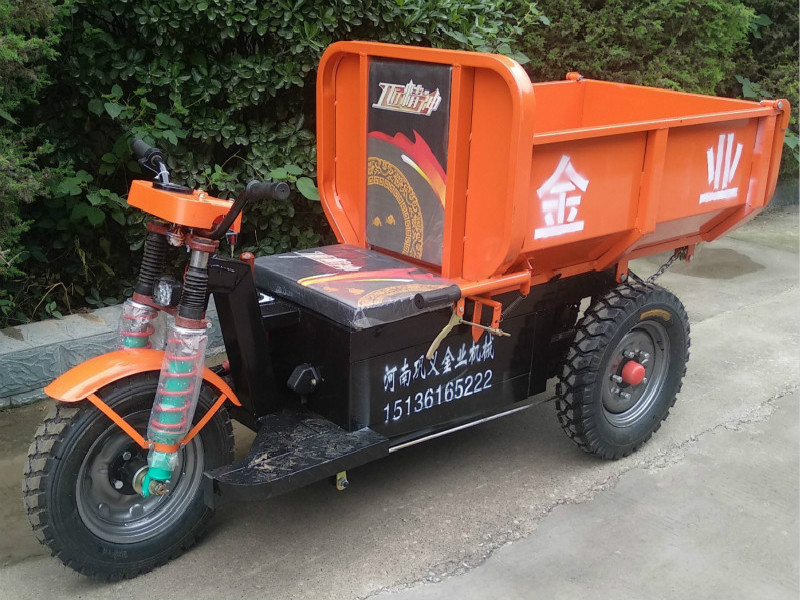

Hand overturning bucket is driven by pure electric power, the use of hand movement unloading, small body, the vehicle only 150kg, can freely enter the elevator, imitation automatic gear car gear design, simple operation, no training, the use of continuously variable speed can achieve uniform and smooth speed regulation under heavy load conditions, while protecting the motor. With 4 12V batteries as power source and 38A batteries, the driving speed is parallel to the walking speed of human beings. Compared with the fuel transport vehicle, the consumption of 1 kilowatt electricity of the hand-pushed electric hatch-up car is equivalent to the consumption of 1.5 liters of fuel of the fuel transport vehicle, with zero emissions. Strong climbing ability, small requirements for road conditions, rugged roads, high and low temperature conditions can be used. The cargo box is thickened, the bottom plate adopts 3mm plate, and the thick wall strengthens the double-layer integral welded frame. The whole vehicle breaks through the traditional process, and the vehicle is produced in separate parts, which can be disassembled and assembled at will for convenient after-sales maintenance. The company's front and rear cast axle is stronger than the traditional welded axle. Chassis reinforcement, in line with industry standards. Replacement parts are readily available at the local time.

---



---





Shovel tip compartment length size (length width height cm) : 120*80*45
Vehicle size (length, width and height cm) :230*80*120
Dead weight: 280kg
Load: 1000kg

Motor power: 1000w
Motor type: Brush motor
Battery Model: 45-52A Dry charge (maintenance-free)
Voltage: 48V
Insulation class: Class B
Range: 70 (km)
Climbing ability: 15 degrees --20 degrees
Design speed: 20 (km/h)
Transmission gear: electric
Tires: 400-12 on the front and 450-12 on the rear



---



Product advantages:

1, pure electric drive, zero emission, no noise.

2, simple operation, no training, the elderly, women can operate and use.

3, the use of continuously variable speed can achieve uniform and smooth speed regulation under heavy load conditions, while protecting the motor.

4, power with 4 12V battery as power source, full of a power can work continuously for 8-10 hours.

5, the road condition requirements are small, rugged road, high and low temperature conditions can be used.

6, strong climbing ability, climbing ability of 15° slope.

7. Maintenance is simple, as long as some joints are lubricated, such as bearings, steering Bridges, etc., the other parts are mainly checked and cleaned.

---



Hand overturning bucket is driven by pure electric power, the use of hand movement unloading, small body, the vehicle only 150kg, can freely enter the elevator, imitation automatic gear car gear design, simple operation, no training, the use of continuously variable speed can achieve uniform and smooth speed regulation under heavy load conditions, while protecting the motor. With 4 12V batteries as power source and 38A batteries, the driving speed is parallel to the walking speed of human beings. Compared with the fuel transport vehicle, the consumption of 1 kilowatt electricity of the hand-pushed electric hatch-up car is equivalent to the consumption of 1.5 liters of fuel of the fuel transport vehicle, with zero emissions. Strong climbing ability, small requirements for road conditions, rugged roads, high and low temperature conditions can be used.



---

Service philosophy: The interests of customers are our priority. Our service pursuit of refinement, from pre-sales consulting, to sales to promote products, and then to after-sales maintenance, we are required to fine.

One-stop service process: We have rich service experience, perfect service system, excellence of service spirit, scientific and reasonable management mode and professional after-sales team, is the basis of our commitment to provide high quality service for users.

Perfect parts service: We provide you with the company's production of hand flip truck, complete models, reliable performance, stable and durable. To ensure the supply of spare parts and improve customer satisfaction is the unremitting pursuit of Gongyi Zhongyuan Machinery Factory.
