Test video



---

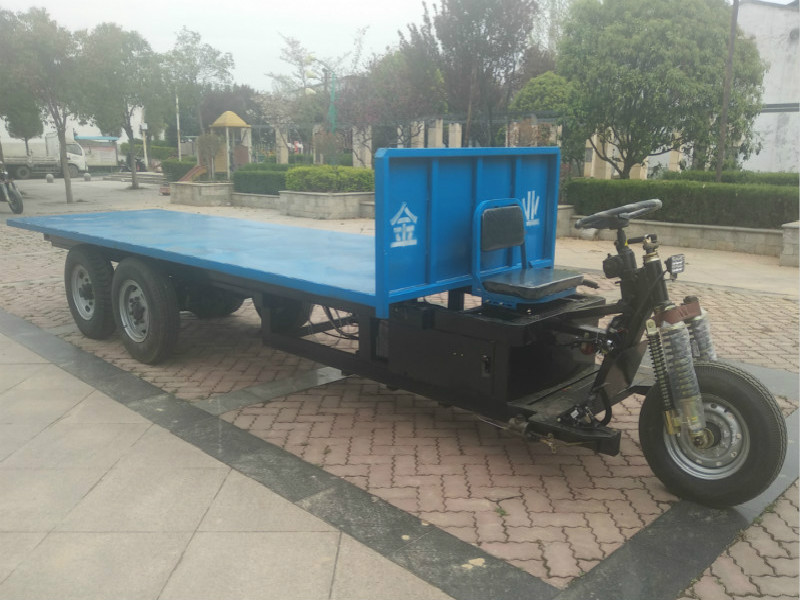

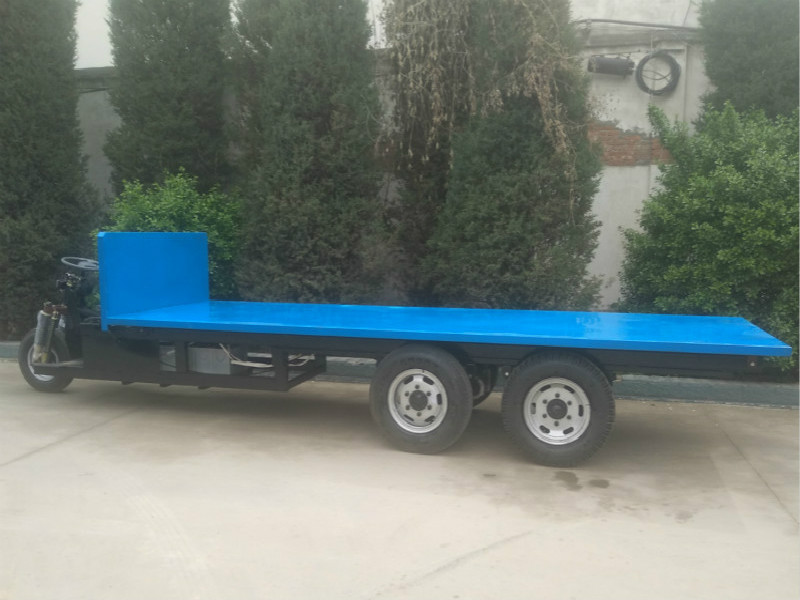

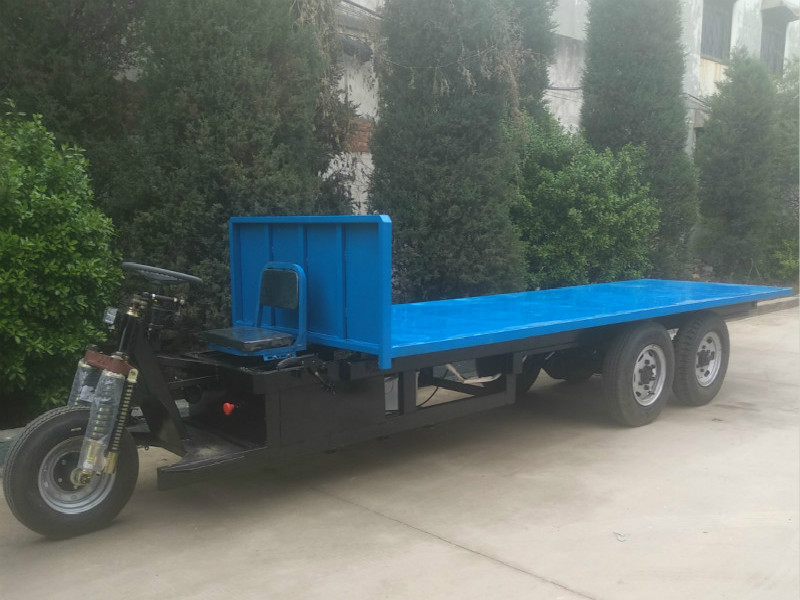

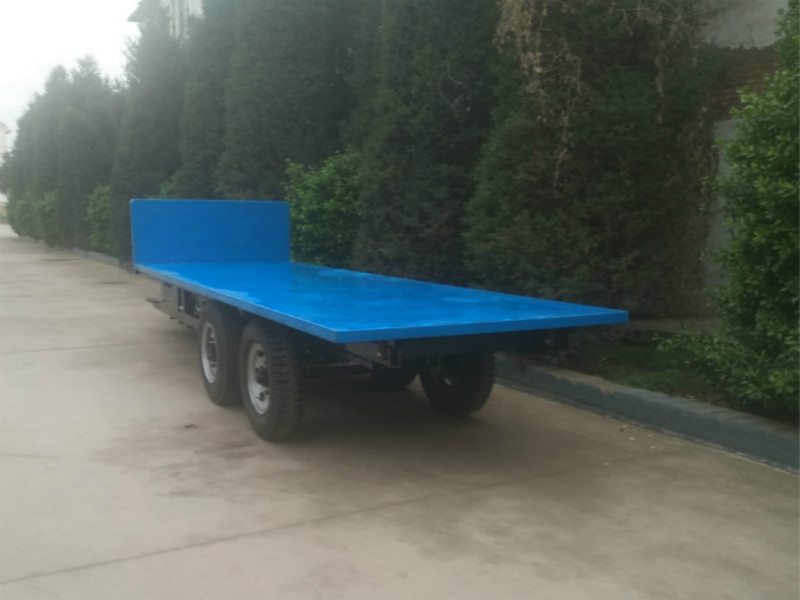

Enterprise machinery of 5 tons electric three-wheeled platform car use 7500 w brushless motor, powerful, 60 v200a dry and maintenance-free battery 10, after life empty can travel 100 km, stepless variable speed. Automatic astern. Intelligent charging. Overvoltage undervoltage protection and many other technologies! The characteristics of the car is the size widened and lengthened, the total length of the car is 5 meters wide 1.5 meters, suitable for large tonnage short-distance transportation of major factory and construction sites, simple operation, wide vision, high performance. Low energy consumption.. Good performance, true green car. Also more and more popular in all walks of life, the car 100 kilometers of electricity consumption for fuel consumption of 20%, become the economy in people's lives. Affordable. Ideal means of transport.







Electric flatbed car is used in various factory production operations, suitable for construction site, pipe factory, carton factory, furniture factory, rice factory, chemical plant, water purification agent factory, refractory material factory, brick factory and other fields, is a relatively economic. Affordable. Ideal means of transport. It can reduce labor force, reduce labor intensity, improve production efficiency, greatly reduce production costs, and increase factory profits. Owners are welcome to choose a variety of electric flat transport vehicles according to their actual needs.

---



Main advantages of electric flat tricycle:

1, (body) : The use of automobile steel frame, more toughness than the traditional riveted welding frame, still remain unchanged after heavy pressure.

2, (accessories) : the quality of parts reaches the standard level of the line, replacement parts are easier to buy in time.

3. (Chassis) : The front and rear casting axle used by the company is stronger than the traditional welded axle. Chassis reinforcement, in line with site requirements.

4. (Process) : The whole vehicle breaks through the traditional process, and the split production of the vehicle can be disassembled and assembled arbitrarily, which is convenient for after-sales maintenance.

5. (Material) : In the process of scientific research, production and assembly of steel and screws, the company strictly checks the quality to reach the standard level of the industry.

Features of large electric flat tricycle:

1. Zero emission, energy saving and low consumption

2. Simple operation, easy maintenance, no training required.

3. Large load, wide range of application. Brick factory, furniture factory, refractory materials factory and other enterprises ideal transport.

4. Large power, small requirements for road conditions.



---

Electric flat car parameters:

Carriage size (length and width cm) : 500*150

Vehicle size (length, width and height cm) :650*150*130

Height from the ground: 80cm

Dead weight: 700kg

Load: 5000kg

Motor power: 7500w

Motor type: brushless motor

Battery model: 200A maintenance-free dry battery

Voltage: 60V (6v* 10pcs)

Insulation class: Class B

Range: 100 (km)

Climbing capacity: 30°

Design speed: 15-30 (km/h)



---
