Electric Mine Dump Truck test Video

---

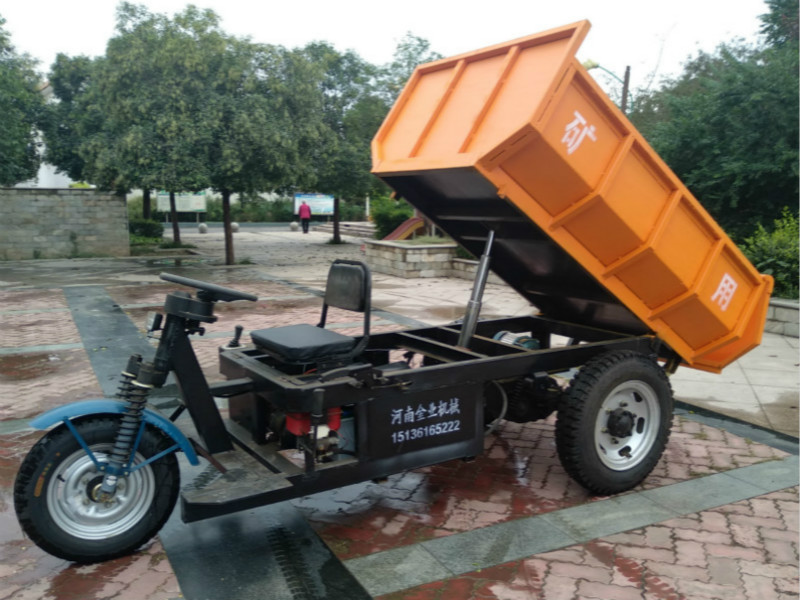

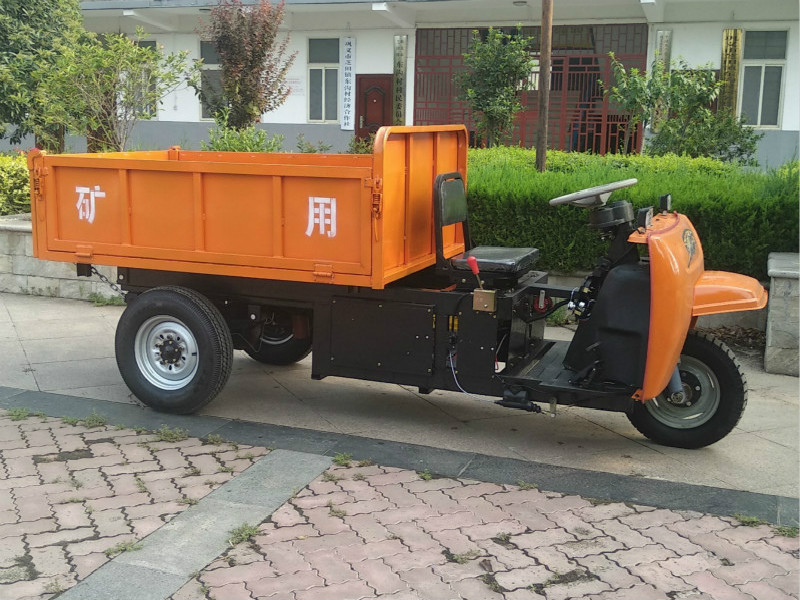

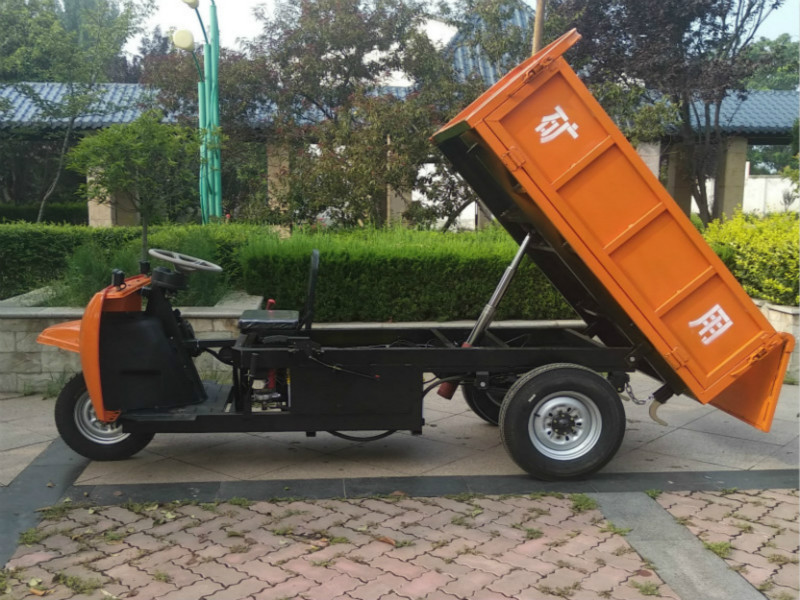

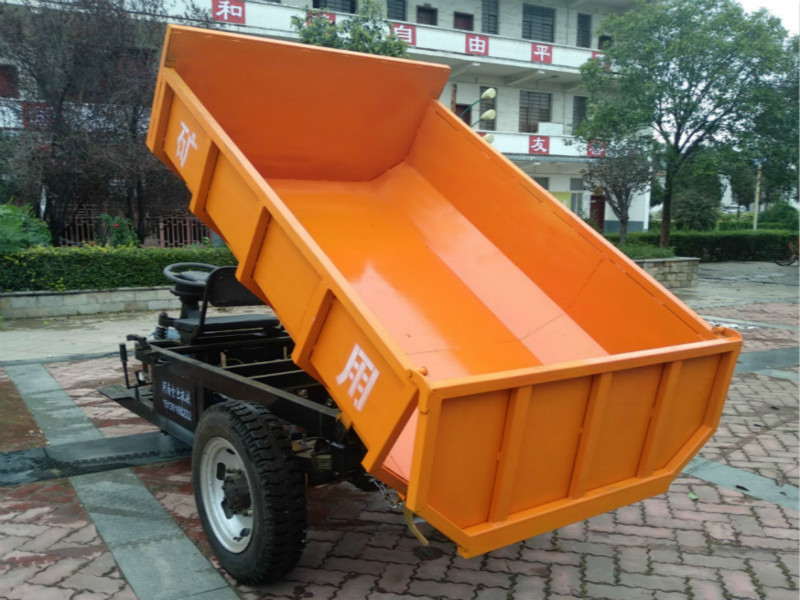

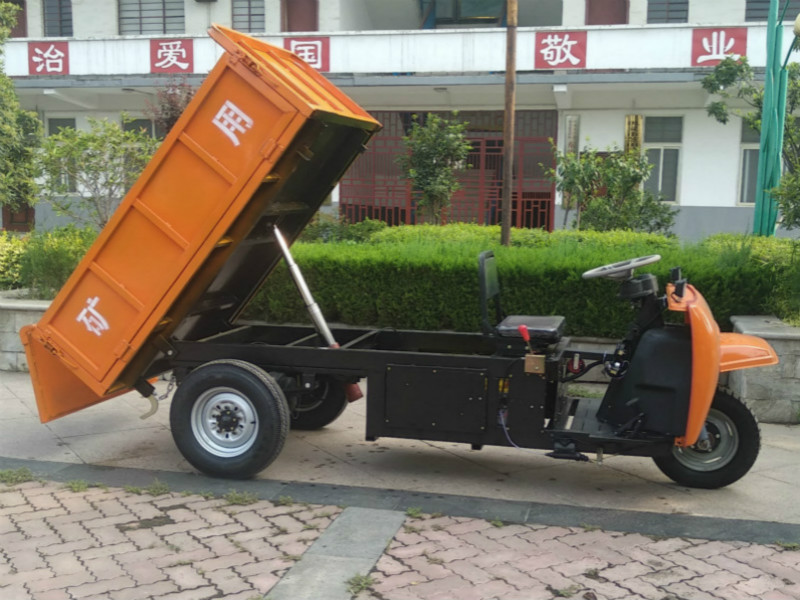

2 tons mine electric three-wheeled dump truck

2 tons mine electric three-wheel dump truck is also called mine electric three-wheel transport truck, 72V battery as power source, 2000W organic, strong power, heavy load, hydraulic system, save time and labor, equipped with high-performance traction battery, a charge can achieve continuous discharge 10-12 hours, 100 kilometers, The normal use of two years of battery capacity is not reduced, driven by the motor to carry out the work of electric transport vehicles. The adoption of continuously variable speed, automatic reversing, intelligent charging, overvoltage and undervoltage protection and many other new technologies! The mine electric dump truck is simple to operate, easy to use, and much lighter than the internal combustion car. Its electric steering system, acceleration control system, hydraulic control system and brake system are controlled by electric signal, which greatly reduces the labor intensity of the operator and improves the stability and reliability of transportation. Mine electric dump truck with high performance, low energy consumption, no noise, good performance, is a true green environmental protection car.



---



Mine with electric three-wheel dump truck can transport ore in the mine, clean slag, transport tools, personnel, etc. It can also be used in garbage transport, sand transport, crop transport, feed transport, cargo transport, construction sites and other fields.



---



Our 2-ton mine electric three-wheel dump truck has various models and colors. The following is part of the models. You can customize the body color you need according to your own needs.



---



Our main product mining electric vehicle is mainly a transport vehicle to carry out the operation of electricity, with battery as the power source, equipped with traction battery, a charge can achieve continuous discharge of 10-12 hours, normal use of the battery capacity within two years. The electric mining dump truck is simple to operate, easy to use, and much lighter than the internal combustion car. Its electric steering system, acceleration control system, hydraulic control system and brake system are controlled by electric signal, which reduces the labor intensity of the operator and improves the stability and reliability of transportation.



---

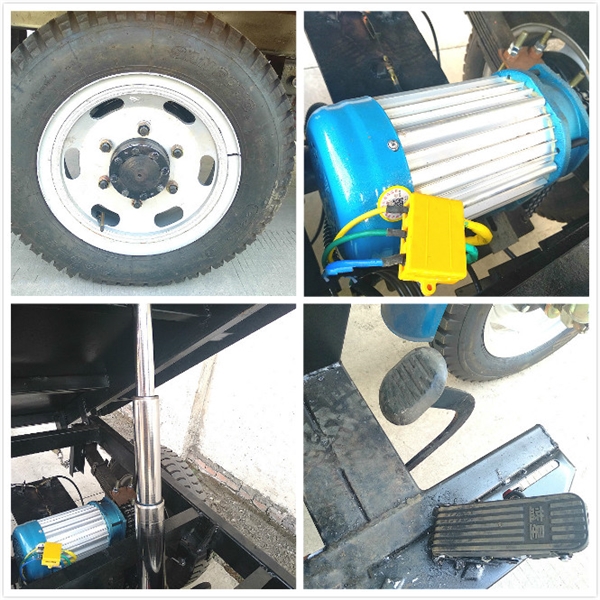

Detailed picture of some key parts of 2 ton mine electric three-wheel dump truck



---



After-sale maintenance of 2 tons mine electric three-wheel dump truck:

1. When inspecting and repairing electric mine vehicles, take protective measures such as braking and mask wheel. For example, when the carriage is in the state of lifting, effective support and other protective measures should be taken.

2. After the electric mine vehicle stops, check whether the ammeter has leakage phenomenon. Check the indicators and ensure that they are complete and valid.

3. Clean the whole car, check the screw locking condition of all parts, check the tire and steel ring, leaf spring, lifting lug, riding bolt, etc.

4. Check supplementary lubricating oil, hydraulic oil, etc., and see whether there is leakage at each pipeline joint.



---



Part of the key data of 2 tons mine electric three-wheel dump truck

Carriage size (length, width and height cm) : 180*120*50

Vehicle size (length, width and height cm) :320*120*130

Dead weight: 600kg

Load: 2000kg

Motor power: 2000w

Motor type: Brush motor

Battery model: 180

Voltage: 72V

Insulation class: Class B

Range: 90 (km)

Climbing ability: about 20 degrees

Design speed: 20 (km/h)

---





---
